1) Obtained the structure of national invention patent, which can reach to 1500kg, and punch the metal snap button of φ60 easily in high quality.
2) High safety, expect computer program for protection, besides there has a stroke protection device internally. The machine will punch button only at the moment when upper button and down button are touched together that ensues working more safety.
3) Use direct drive servo motor, only working in attaching flashily, usually standby there. It saves more than 90% power comparing with traditional machine.
Saving 90% Power
Servo Motor, Power Efficient
Double Protection, Safer
Stable Punching Force

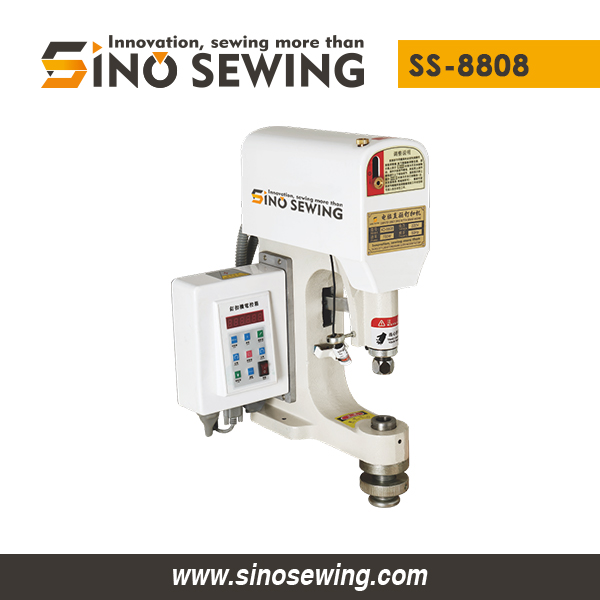

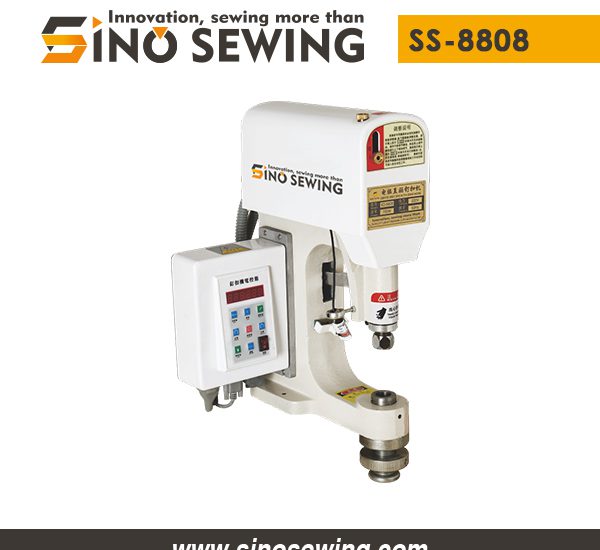

Technical Data Sheet of Model: SS-8808
Model
Voltage (v)
Frequency (Hz)
Power (w)
Punching Force (kg)
Rotate Speed (s)
Stroke (mm)
Size of Machine (mm)
Size of Frame (mm)
Weight of Machine (kg)
Weight of Frame (kg)
SS-8808
180~240/110
50~60
750
1500
5000
40
455*255*520
1050*580*110
28.5
27
SINO Sewing Brand, an integrated industrial company of production and sales has accumulated nearly 18 years’ experience in sewing industry. Our market covers South East Asia: Vietnam, Thailand, Malaysia, Kampuchea, Burma, Bangladesh, Sri Lanka; The Middle East: India, Pakistan, Iran, Dubai, Syria; Africa: Morocco, Algeria, Egypt, Nigeria, Kenya; Europe: Spain, Portugal, Romania, Turkey Americas: Brazil, Columbia, Mexico, Ecuador, Peru
