Description

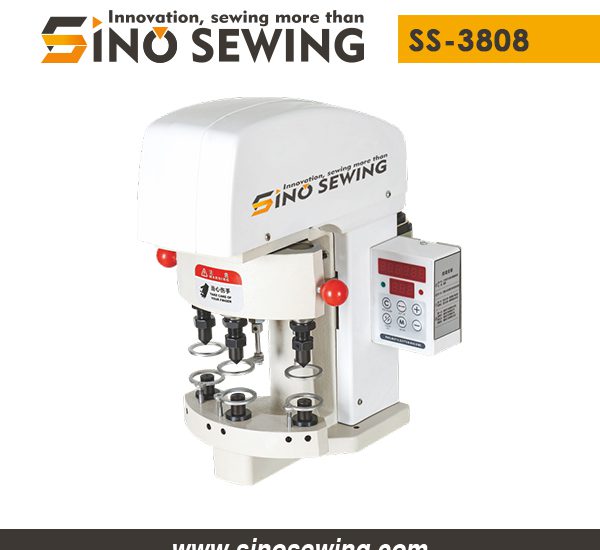

Features of Model: SS-3808
1) Intelligent time-delayed
Intelligent time-delayed function can be used to protect button in perfect shape.

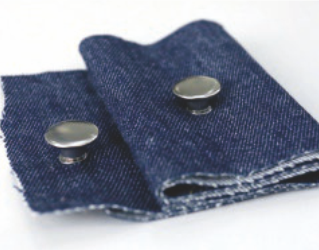

2) Thick or thin fabric taking all
Intelligent control pressure can be suitable for thick fabric like denim and thin fabric like Knits and shirt, etc.

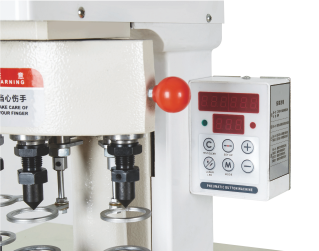

3) Intelligent counter
Intelligent patent accounting device can be saved precise working data easily.

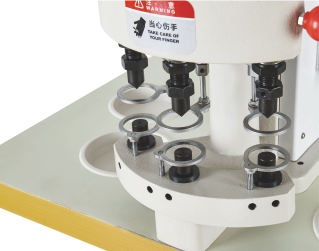

4) Safety protecting ring
Patent safety ring for protecting the operator’s finger covers lower and upper of three-station.
5) Equally and stable air pressure
Top quality pneumatic elements ensures the equally and stable air pressure.
 |
 |
 |
 |
| Thick or Thin Fabric Taking All | Intelligent Counter | Safety Protecting Ring | Equally and Stable Air Pressure |
|---|
Technical Data Sheet of Model: SS-3808
| Model | Voltage (v) | Frequency (Hz) | Power (w) | Air Pressure (kg/cm) | Delay Time (s) | Stroke (mm) | Cylinder Dia. (mm) | Size of Machine (mm) | Size of Frame (mm) | Weight of Machine (kg) | Weight of Frame (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SS-3808 | 220 | 50~60 | 10 | 2~10 | 0.1~9.9 | 40 | 100 | 525*410*265 | 1050*580*110 | 26 | 27 |
