Description

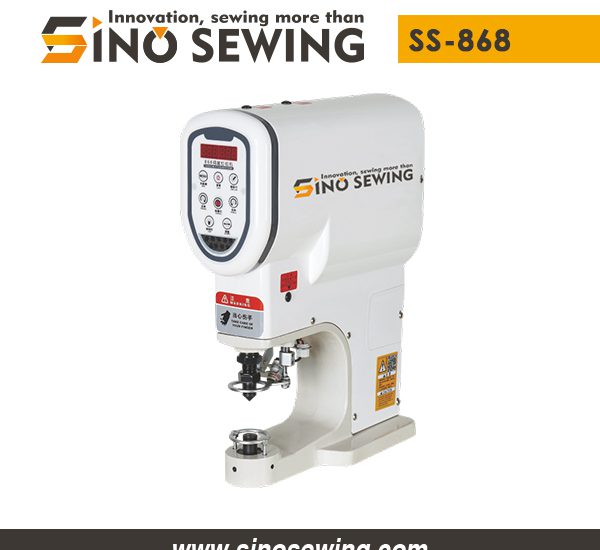

Features of Model: SS-868

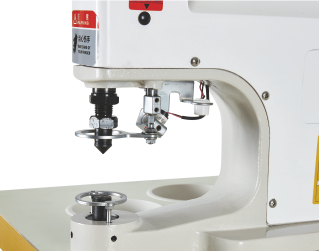

1) Safety protecting ring
Unique and built-in mechanical protection device, just need to adjust the safe stroke. In addition to there has double protection with computer program.

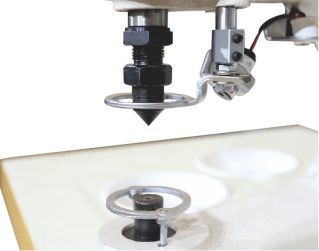

2) More operating space
The available operation space is larger, no matter big snap button attaching, or small.

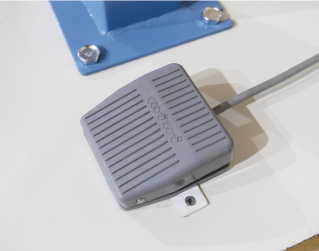

3) Electric foot switch
Electric foot switch can be reduced labor intensity easily.
4) Power saving
Use direct drive servo motor, only working in attaching flashily, usually standby there.
 |
 |
 |
 |
| High Position Safety Protecting Ring | Wider Operation Space (8cm) | Electric Foot Switch | Servo Motor, Power Efficient |
|---|
Technical Data Sheet of Model: SS-868
| Model | Voltage (v) | Frequency (Hz) | Power (w) | Punching Force (kg) | Rotate Speed (s) | Stroke (mm) | Operation Space (mm) | Size of Machine (mm) | Size of Frame (mm) | Weight of Machine (kg) | Weight of Frame (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SS-868 | 180~240v/110v | 50~60 | 750 | 1500 | 1000~5000 | 40 | 160 | 525*410*265 | 1050*580*110 | 26 | 27 |
