1) Use direct drive servo motor, only working in attaching flashily, usually standby there. It saves more than 90% power comparing with traditional machine.
2) High safety, with a unique built-in mechanical device and computer programs ensures double protection.
3) With stable punching force, which can reach to 1200kg instantly in 550w, and punch the metal snap button of φ40 easily.
Saving 90% Power
Servo Motor, Power Efficient
Double Protection, Safer
Stable Punching Force

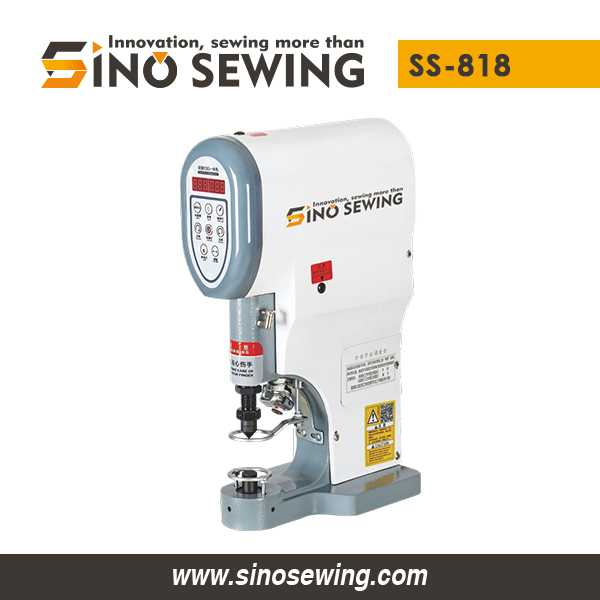

Technical Data Sheet of Model: SS-818
Model
Voltage (v)
Frequency (Hz)
Power (w)
Punching Force (kg)
Rotate Speed (s)
Stroke (mm)
Size of Machine (mm)
Size of Frame (mm)
Weight of Machine (kg)
Weight of Frame (kg)
SS-818
180~240/110
50~60
550
1200
5000
40
455*365*250
1050*580*110
16
27
